# DC-DC преобразователь

Последние версии всех 3D моделей, фото и схем продукции VBCores можно найти у нас на github: <https://github.com/VBCores/VBCores_files> &#x20;

{% columns %}
{% column %}

<figure><img src="https://github.com/VBCores/VBCores_files/raw/main/14-VB-DC-DC-12V3A/vb-dcdc12v3a-v1_0-1.jpg" alt="" width="188"><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

<figure><img src="https://github.com/VBCores/VBCores_files/raw/main/14-VB-DC-DC-12V3A/vb-dcdc12v3a-v1_0-2.jpg" alt="" width="188"><figcaption></figcaption></figure>
{% endcolumn %}
{% endcolumns %}

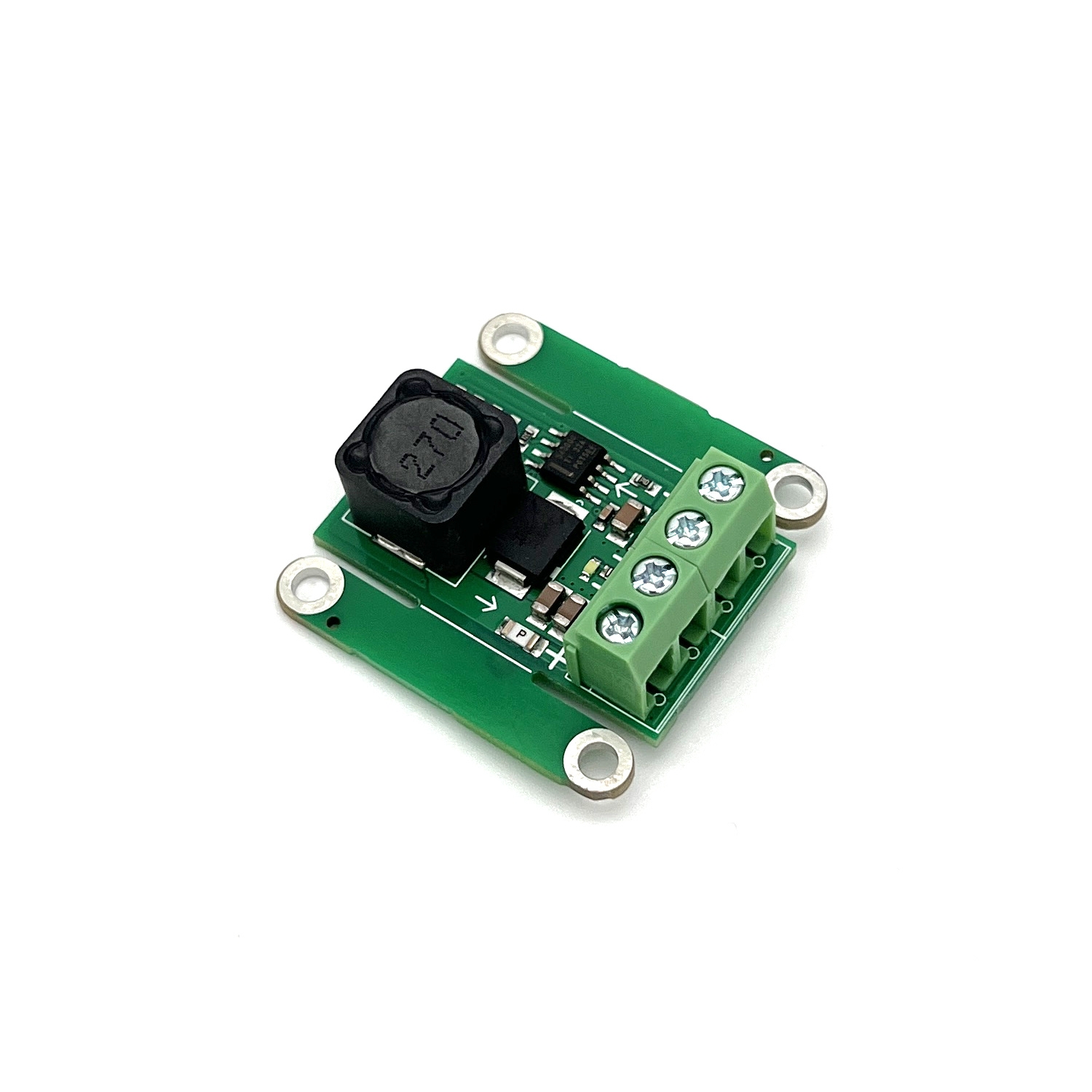

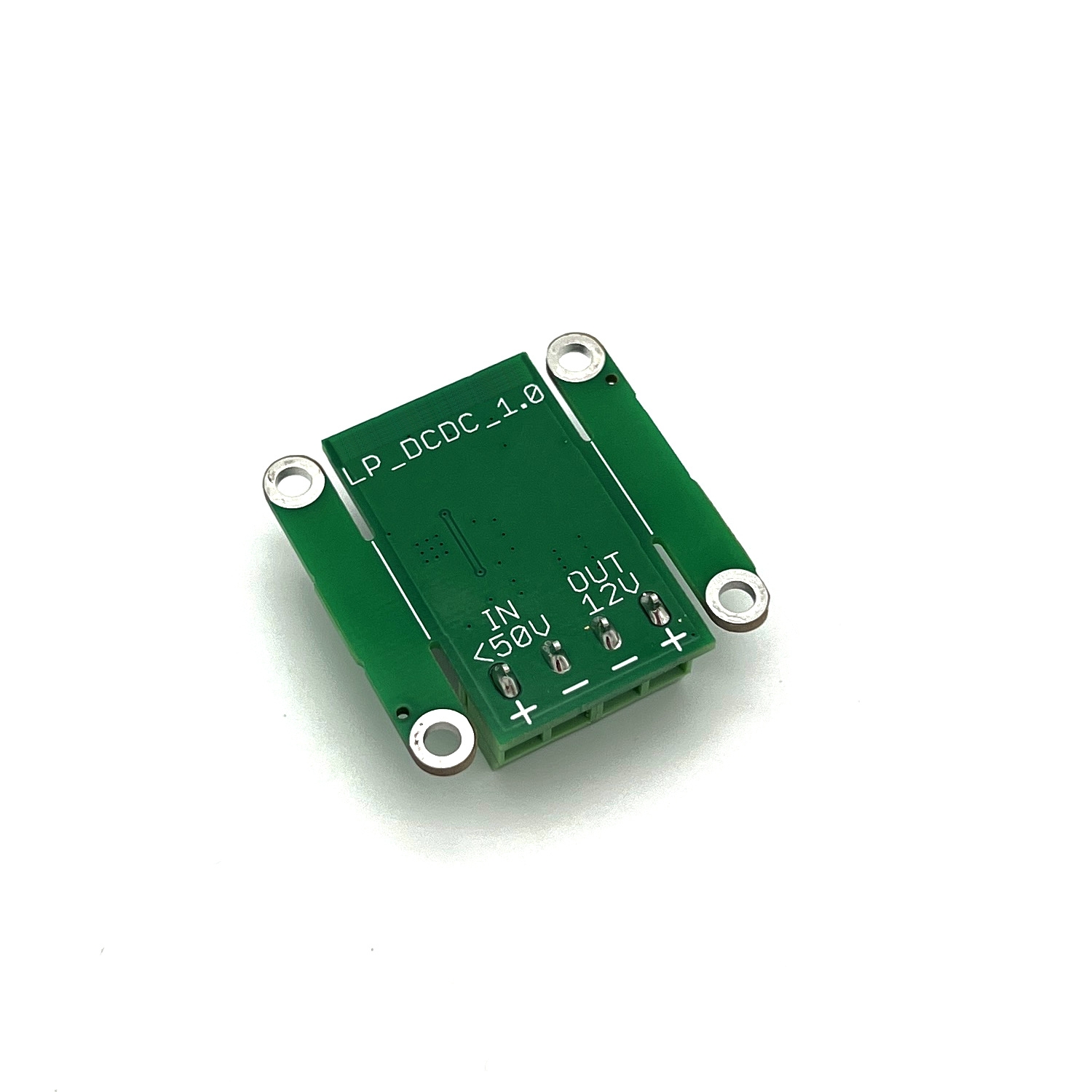

Преобразователь напряжения. Входное напряжение до 50В, на выходе 12В 3А

#### Features

* **IC** [TPS54360B](https://www.ti.com/product/TPS54360B)
* **Input**: 15-50V
* **Output**: 12V 3A

#### Dimensions

* PCB:
  * With mounting brackets: 36x36 mm
  * Without mounting brackets: 36x22 mm
* Mount holes: M3 30x30 mm

{% embed url="<https://github.com/VBCores/VBCores_files/raw/main/14-VB-DC-DC-12V3A/vb-dcdc12v3a-v1_0-schematic.png>" %}
Схема преобразователя
{% endembed %}

[📥 Скачать PDF (Схема преобразователя)](https://raw.githubusercontent.com/VBCores/VBCores_files/main/14-VB-DC-DC-12V3A/vb-dcdc12v3a-v1_0-schematic.pdf)
